October 30, 2007 Fireball Captured
at 0706:50 Co-ordinated Universal Time.
Movie Below with Stereo Sound

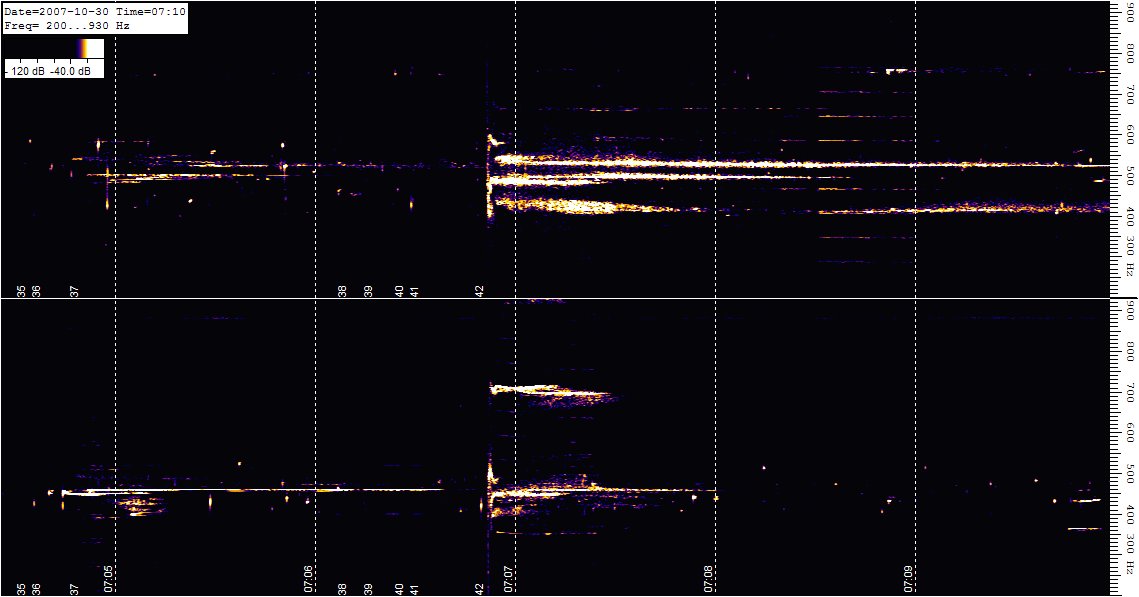

The above Spectrum Lab chart is a simultaneous sound
recording of two separate forward scatter radios recorded in stereo.
The top half of the spectrograph is 61.250 MHz and
the bottom half is 83.250 MHz.
Below is the movie in two different formats : .mp4
for Quicktime players and the same movie in .divx format.
Hopefully you will be able to play one or the other.
FB20071030_0706UT_Ashcraft.mp4
2.5 MB 17 seconds
FB20071030_0706UT_Ashcraft.divx
1.1 MB 17 seconds
Briefly, here is my fireball observation and capture
method as developed thus far. It is a work in progress.
I am visually recording the whole sky from dusk to dawn with a video
camera (a HiCam HB-710E; lens is a Rainbow L163VDC4P fisheye ) into
a Panasonic VCR. On the first stereo audio channel of the VHS tape I am
recording at 83.250 MHz and on the second stereo channel I am recording at
61.250 MHz using two separate ICOM PCR-1000 radios. I am splitting
the forward scatter signal into SpectrumLab software which serves as my
audio chart recorder. I go through the night's Spectrum Lab charts and look
for any prominent meteor scatter reflections and then go to that time point
on the night's video tape to check to see if there is a visual fireball
capture. I am pleased to find that significant line of sight fireballs
do indeed make forward scatter reflections receivable in my radio
system.
Any feedback, suggestions, critiques welcome.
Thomas Ashcraft
35.50 North Lat. 105.89 West Long.
New Mexico
